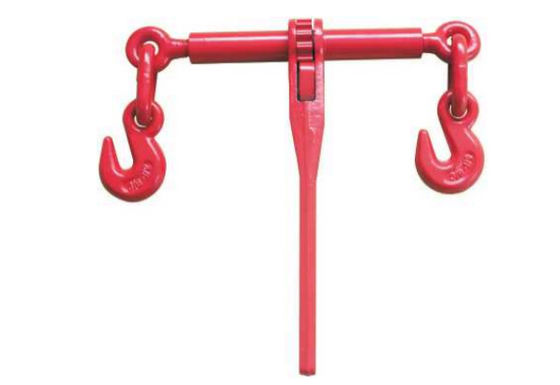

Chains Ratchet Type Load Binder Forged Tensioner Rigging

Large Image : Chains Ratchet Type Load Binder Forged Tensioner Rigging

Product Details:

Place of Origin:	China
Brand Name:	Anfeng / AF
Certification:	CE, GS, ISO
Model Number:	/

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	Call or Email for quote
Packaging Details:	Carton + pallet, wooden box, or custom
Delivery Time:	Within 45 days after order confirmation
Payment Terms:	T/T, L/C
Supply Ability:	10,000 pcs per month

Contact Now

Chains Ratchet Type Load Binder Forged Tensioner Rigging

Description

Key Word:	Forged Tensioner Rigging US STANDARD CHAINS Ratchet Type Load Binder	Material:	High Strength Alloy Steel
Strength Of The Chain:	Grade 80	Chain Accessory:	With Master Link Assemblies, Grab Hooks And Chain Shorteners
Finish:	Chain Hot Dip Galvanized And Accessories Painted Red Or Customized	Standard:	ISO1835, ISO3077, EN818-2
Length:	Customized	Application:	Overhead Lifting Application, Industrial Lifting, Heavy Lift
Packaging:	Carton + Pallet, Wooden Box, Or Custom	OEM Or ODM Services:	Yes, Upon Request
Highlight:	Forged Ratchet Type Load Binder , Chains Ratchet Type Load Binder , Tensioner Lifting Chain Sling

Forged Tensioner Rigging US STANDARD CHAINS Ratchet Type Load Binder

Main features:

- Alloy steel

- Heat treated and hot dip galvanized

- Minimum proof test load is 2 times of the working load limit.

- Grade 80 chain accessories

Specification

MIN-MAX CHAIN SIZE (IN)	HANDLE LENGTH (IN)	BARREL LENGTH (IN)	TAKE-UP (IN)	WORKING LOAD LIMIT (lbs)	PROOF LOAD (lbs)	MINIMUM ULTIMATE STRENGTH (lbs)	WEIGHT (lbs)
5/16-3/8	14	10	8	5400	10800	19000	10-5
3/8-1/2	14	10	8	9200	18400	33000	12.9
1/2-5/8	14	10	8	13000	26000	46000	14. 38

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
