Alloy Steel Wide Body Shackles U Bolt Wire Rope Clip Malleable

Large Image : Alloy Steel Wide Body Shackles U Bolt Wire Rope Clip Malleable

Product Details:

Place of Origin:	China
Brand Name:	Anfeng / AF
Certification:	CE, GS, ISO
Model Number:	KWB-800

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	Call or Email for quote
Packaging Details:	Carton + pallet, wooden box, or custom
Delivery Time:	Within 45 days after order confirmation
Payment Terms:	T/T, L/C
Supply Ability:	10,000 pcs per month

Contact Now

Alloy Steel Wide Body Shackles U Bolt Wire Rope Clip Malleable

Description

Key Word:	Wide Body Bow Shackle With Safety Bolt, High Load Capacity, With Increased Bow Radius To Improve Life Of Sling	Material:	Cast Alloy Steel, Forged Alloy Steel, Quenched And Tempered
Finish:	Shackle Bow Painted Silver And Pin Painted Yellow	Safety Factor:	5:1
WLL:	800 Tonne	Standard:	ASME B30.26-2004
Custom Services:	OEM Or ODM	Packaging:	Carton + Pallet, Wooden Box, Or Custom
Type Of Shackle:	Bow Shackle	Bolt Type:	Safety Bolt With Nut And Cotter Pin
Highlight:	U Bolt Wire Rope Clip , Wire Rope Clip Malleable , Alloy Steel Wide Body Shackles

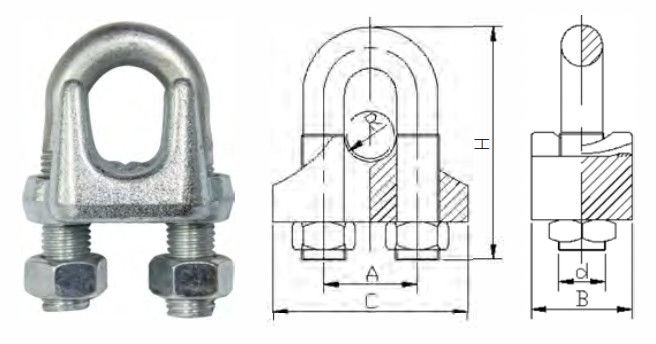

U-Bolt Wire Rope Clip - Malleable

Product Overview

Wire rope clips are used to secure the loose end of a wire rope when forming an eye. The U-Bolt Clips have a u-bolt that is secured into

a saddle by two nuts. Wire rope assemblies almost always require two, or more wire rope clamps to secure the wire rope properly.

Drop forged wire rope clips are more heavy duty than malleable rope clips and can therefore be used for more heavy-duty rigging applications. In addition, they aregalvanized with a heavy coating of zinc that resists the corrosion and abuse found in rugged work environments.

Product features:

- Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings.

- Can be used to connect high strength synthetic web slings, high strength synthetic round slings or wire rope slings.

- All sizes quenched and tempered for maximum strength.

- Forged alloy steel from 7 through 300 metric tons.

- Cast alloy steel from 400 through 1550 metric tons.

- Sizes 300 metric tons and smaller are proof tested to 2 times the working load limit.

- Sizes 400 metric tons and larger are tested to 1.33 times working load limit.

- Sizes 300 metric tons and smaller are proof load is 2 times the working load limit.limit.

- Sizes 400 metric tons and larger are proof load is 4.5 times the working load limit.

- Shackles bows are all hot dip galvanized , screws and the bolts are painted yellow or customized request.

- Meets or exceeds all requirements of ASME B30.26-2004,RR-C-271D.

- Type approval certification in accordance with DNV for certification of lifting appliances available. Certificates available when requested at time of order and may include additional charges.

Specification

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.

Tag:

Contact Person: Mr. JOHN XU

Tel: +86-13802941278

Fax: +86-21-61766112
